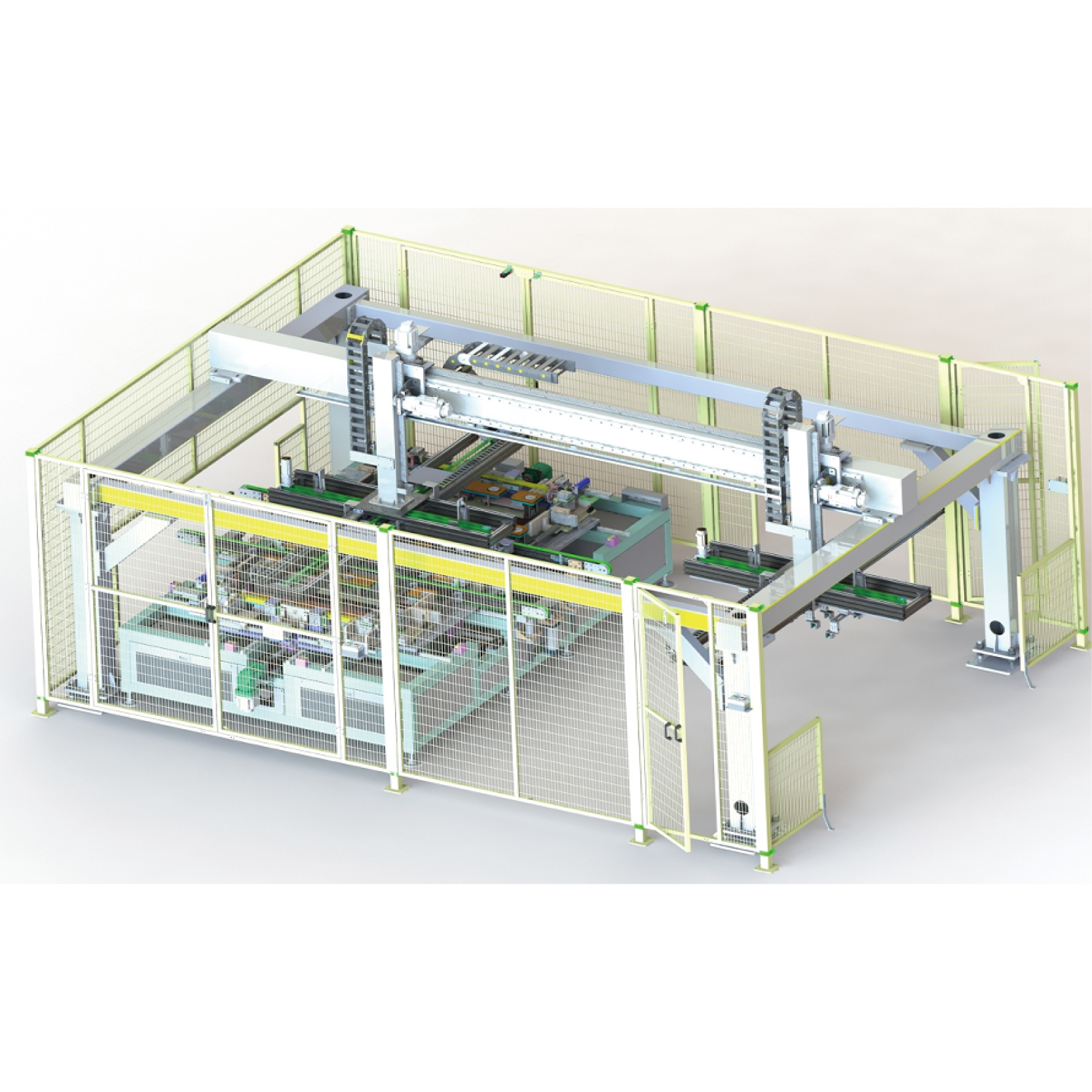

Auto Framing System

Function

1. The framing machine and frame gantry can work independently without interfering with each other.
2. After the frame is transferred to the framing machine, the framing machine performs the frame assembly action.
3. The overall servo lifting of the suction cup surface can be fine-tuned and leveled.
4. One-key switch the board type.

Technical Performance

1. Compatible with B-side frame thickness 25-40mm, C-side 20-35mm, and compatible with no C-side frame.
2. Diagonal assembly accuracy ±1.0mm.
3. Profile assembly height difference ≤0.3mm.
4. Frame corner gap ≤0.3mm.
5. High-speedframing machine ≤12s.
